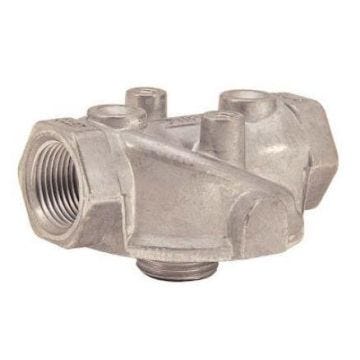

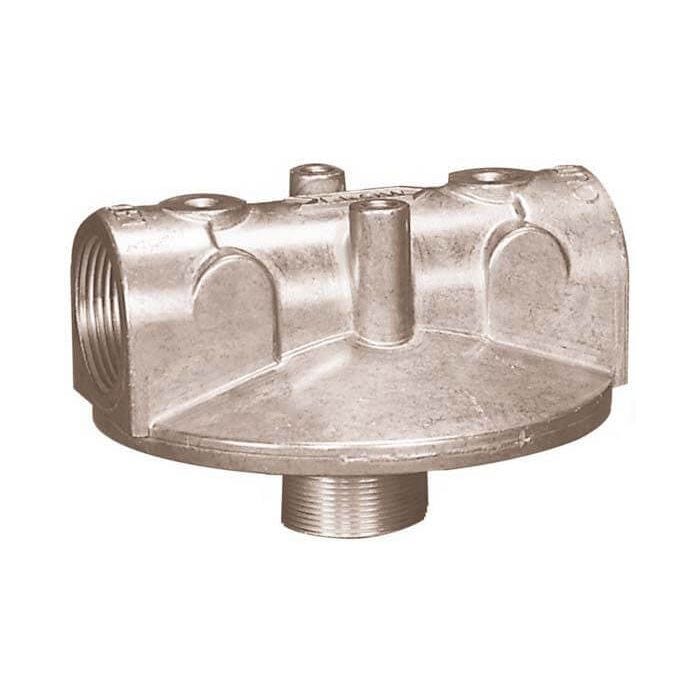

Zinga SF120 Spin-On Filter Head: 70 GPM
This Zinga SF120 spin-on filter head houses the return hydraulic fluid filter on RS-700 RuggedMade log splitters. It can also be used in other hydraulic systems.
- 1-1/4" NPT(F) ports
- 25 PSI bypass valve
RELATED PRODUCTS
High-Performing Zinga Filter Heads
Keep hydraulic fluid flowing smoothly through filters with spin-on filter heads from Zinga. This filter head is found on RuggedMade log splitters with 22 GPM hydraulic pumps.
When installing, be sure to note the flow direction marked on the filter head. Installing in the wrong direction will damage the filter head bypass and filter element.
This filter head is recommended for use on the return line only. Installing between the pump and the hydraulic fluid reservoir may restrict flow and cause cavitation in the pump.
Technical Details
- SKU: 35-565-FLTR-HOUS-SF120250
- Manufacturer: Zinga
- Part Number: SF120250
- Pressure Rating: 200 PSI
- Inlet / Outlet Ports: 1-1/4" NPT(F)
- Flow Rates: 70 GPM (Return), 25 GPM (Suction)
- Bypass Valve: 25 PSI
